ENGINEERED DEHUMIDIFIER

ARIDKOOL

Total Solution for Filtration, Temperature, and RH Control

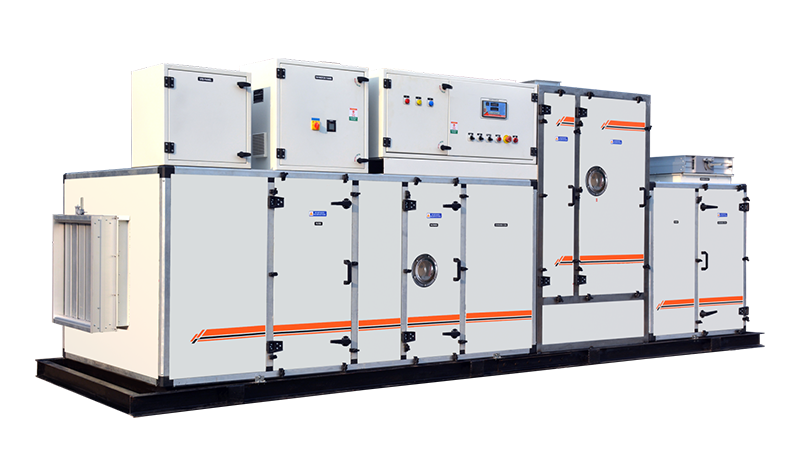

AHU cum DEHUMIDIFIER

Our dehumidifiers are available as standard units as well as packaged with pre-cooling, after-cooling, heating, heat recovery, etc., for the most cost-efficient environment control in various industrial applications. Units are designed with custom configurations of standard components to meet unique project requirements. Total system integration is also available, including heating, cooling, bypass, pre-filter for complete air handling and environment control needs.

High Quality
Hygienic Design
Easy to Assemble on Site
Commissioning by our Skilled Service Engineers

Download

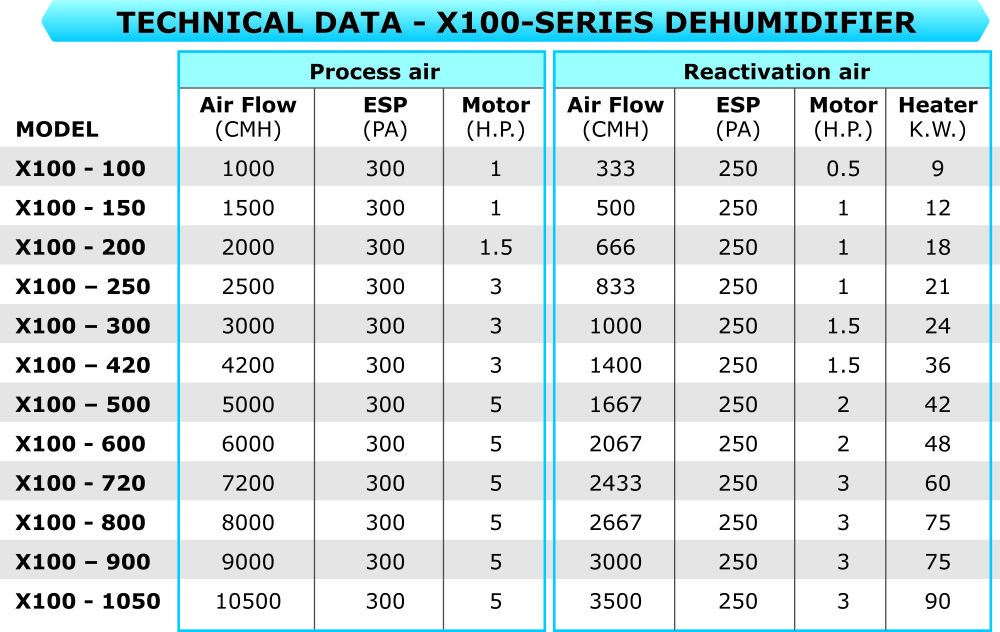

Available in sizes from 100 CMH to 50,000 CMH
Fully functional units with necessary safeties and electric relay-based controls or optional PLC-based Controller
Desiccant rotor technology removes water directly from the air
Designed for industrial processes, including low dew point applications
Integrated pre and post cooling systems available
Fast, simple access to all electrical and mechanical components through hinged doors or removable access panels
Desiccant cassette can be removed for cleaning to extend rotor life and efficiency
Choice of Gas, Steam, and Electric Reactivation
Standard features include easy access inlet filters, self-adjusting/tensioning rotor drive components, and easy seal adjustment
Robust industrial duty structural frame and panel design
Highly compact design with the lowest footprint area
Fully factory assembled, reducing installation time on site and costs

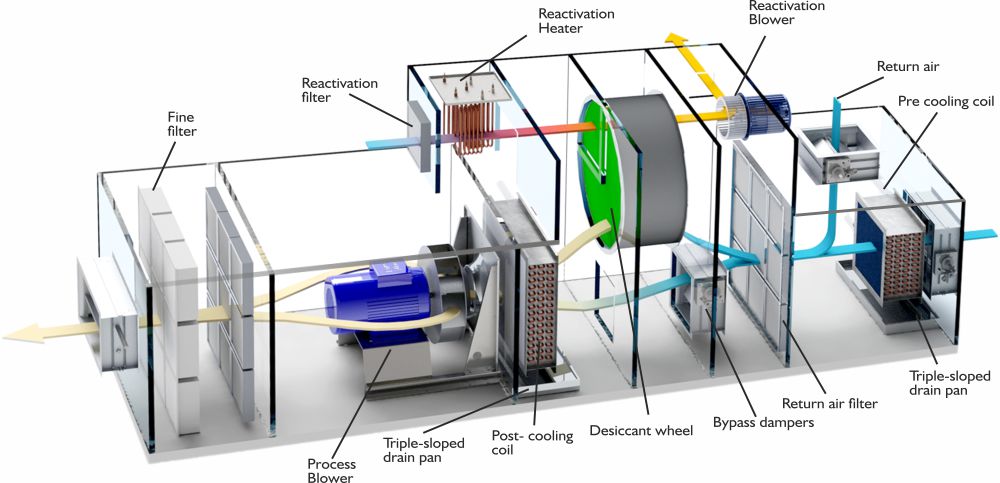

REHOBOTH dehumidifiers operate on the principle of adsorption of water vapor from the air using silica gel.
The desiccant and substrate are arranged in a wheel-shaped rotor matrix with thousands of small parallel air passages extending through its thickness.
The desiccant rotor is housed in a cabinet separated into process and reactivation sections. In the process section, moist air passes through the rotor, and the silica gel adsorbs the moisture.
The rotor slowly rotates into the reactivation section, where a second heated air stream passes through the rotor, heating the desiccant and driving the water out of it. The moisture-laden reactivation air is usually exhausted outside. The reactivated desiccant rotor rotates back into the process section to provide continuous drying of the process air.
In many applications, the process air is cooled before entering the desiccant rotor to enable the system to produce dry air.
The reactivation air stream may be heated by electrical heaters or any other source of heat depending on the application and available utilities.
