Compact Dehumidifier

Drypact

Compact - More Than Your Imagination!

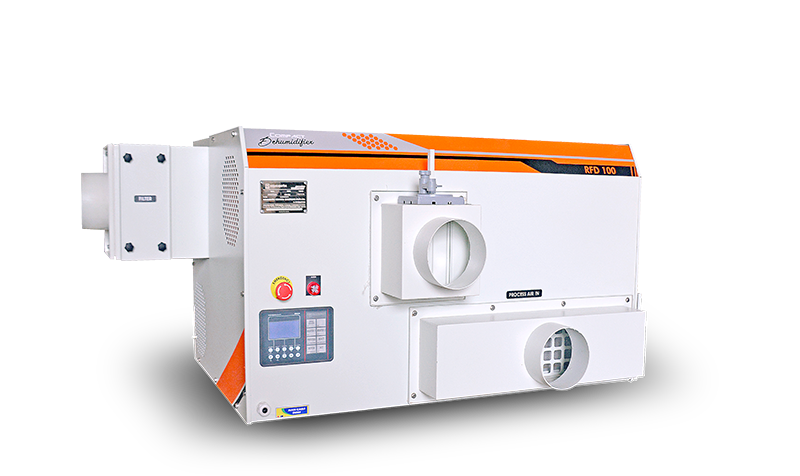

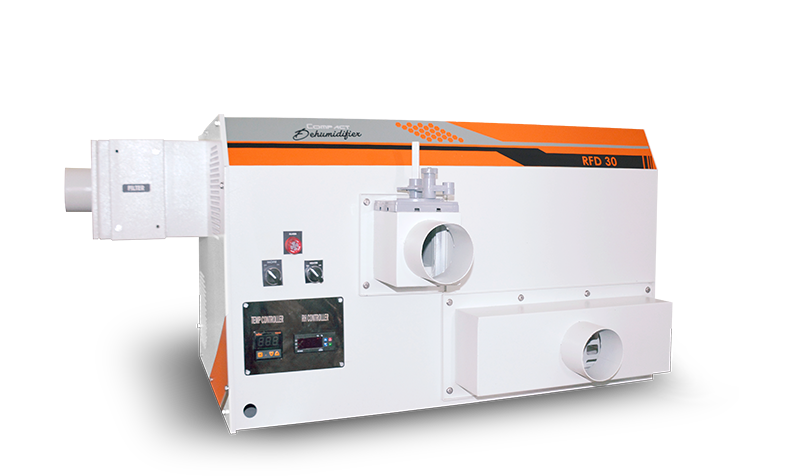

Compact Dehumidifier

Our Compact Dehumidifier unit is equipped with a desiccant rotor section, rotor drive, regeneration module with electric heaters, G4 grade regeneration filter, and reactivation fan and motor assembly. The desiccant wheel features a unique high-temperature substrate media, impregnated with a non-migrating, water-selective, low-temperature regenerating desiccant, ensuring independent airflows with positive sealing between process and reactivation airstreams.

Download

REHOBOTH dehumidifiers operate on the principle of adsorption of water vapor from the air. The desiccant used is silica gel, which is formed on an inorganic substance.
The desiccant and substrate are arranged in a wheel-shaped rotor matrix having thousands of small parallel air passages extending through its thickness.
The desiccant rotor is housed in a cabinet that is separated into process and reactivation sections. In the process section, moist air passes through the rotor, and the silica gel adsorbs the moisture.
To drive the absorbed moisture out of the desiccant, the rotor slowly rotates into the reactivation section, where a second heated air stream passes through the rotor. The hot air heats the desiccant, driving the water out of it. The moisture-laden reactivation air is usually exhausted outside. The reactivated desiccant passes back into the process section, where it once again adsorbs moisture from the process air.

Compact Dehumidifier Model: C70 | Capacity: 70 m3/h | Power Consumption: 1000W
Compact Dehumidifier Model: C100 | Capacity: 100 m3/h | Power Consumption: 1500W
Compact Dehumidifier Model: C150 | Capacity: 150 m3/h | Power Consumption: 2000W
Compact Dehumidifier Model: C200 | Capacity: 200 m3/h | Power Consumption: 2500W
Compact Dehumidifier Model: C250 | Capacity: 250 m3/h | Power Consumption: 3000W

Our desiccant rotors are manufactured using high-grade silica gel, ensuring efficient moisture adsorption and long service life.
Rotors are designed to offer minimal resistance to airflow, ensuring high dehumidification efficiency and low energy consumption.
Advanced sealing technology ensures there is no mixing of process and reactivation air streams, ensuring efficient performance.

Model	Capacity (m3/h)	Power Consumption (W)	Weight (kg)
C70	70	1000	20
C100	100	1500	25
C150	150	2000	30
C200	200	2500	35
C250	250	3000	40

Ideal for use in warehouses and storage facilities to prevent moisture damage to goods.
Used in industrial environments to control humidity and prevent corrosion and mold growth.
Suitable for use in laboratories and research facilities where precise humidity control is required.
Perfect for use in homes and offices to maintain a comfortable and healthy indoor environment.
Used in the pharmaceutical and food industries to maintain the quality and shelf life of products.
